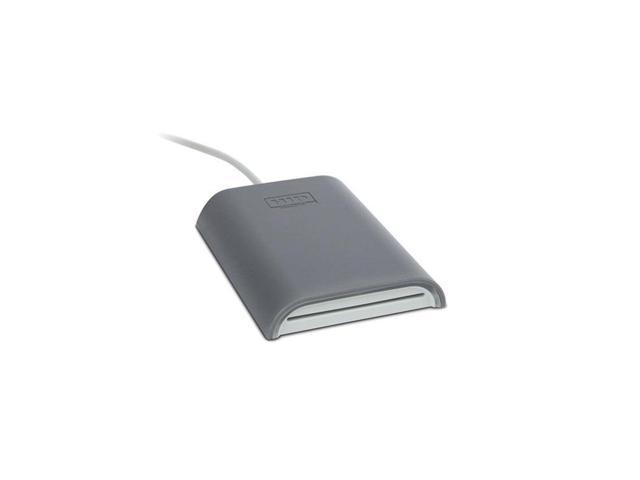

Čtečka Omnikey 5422 USB TAA ROHS CONF/USB CONTACTLESS CARD READER

Base Model Number OMNIKEY® 5422
Contact Smart Card Interface
Standards & Protocols
ISO7816 Class A/B/C
T=0, T=1
S=8, S=9, S=10 (I˛C, 2WBP, 3WBP)
Voltage 5V, 3V, 1.8V
Card Size ID1 (Full size)
Power to Smart Card 60mA
Smart Card Detection Movement detection with auto power-off / Automatic detection of smart card type/ Short circuit and
thermal protection
8-PIN Handling C4 / C8 supported
Contactless Smart Card Interface
Protocols
T=CL, MIFARE®, iCLASS®
ISO 14443A/B - up to 848 kbps (depending on card)
iCLASS 15693 up to 26kbps (depending on card)
NFC Tag 1,2,4*
Host Interface
USB Interface USB 2.0 Full Speed Device (12 MBps)
USB 3.0 extended operability, tested with hubs/controllers
Connector / Cable USB Type A connector; 59.1" (150 cm) cable
Operating Systems
Windows 10/8.1/8/7/Server 2016/Server 2012/Server 2008R2
Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+
Mac OS X; Android™ 4.x-7.x**
Driver CCID native driver from operating system (Windows/Linux/Mac)
Supported APIs PC/SC - API
Human Interface
Status Indicator White LED
Housing
Housing
OMNIKEY Professional Line Desktop Design
Poly Carbonate
Cover grey / Body light grey
Customer-specific logo or colour on request
DUAL INTERFACE CONTACT AND CONTACTLESS SMART
CARD READER
.. Versatile – Ideal for end-user environments using both contact and
contactless smart card technology and migration scenarios.
.. Leverages existing employee badge – Expands the usage of existing
physical access cards to computer logon, as well as network and
cloud access.
.. Easy to install – Eliminates the need to install drivers; uses native
supported CCID drivers within the operating system.
.. Increased security and improved user experience – Reads and retrieves
highly secure one-time passwords (OTP) from Seos® cards.

Dimensions 2.79" x 3.66" x 0.63" (71 mm x 93 mm x 16 mm)
Weight ~100 g (3.53 oz)
Protection Rating IP54 (dust/splashing water)
Operating Conditions
Operating Temperature 32-131 F (0-55°C)
Operating Humidity 10-95% rH (not condensing)
Storage Temperature -4 - 176 F (-20 - 80°C)
Durability 100.000 insertions
Meantime Between Failure (MTBF) 500.000 hours
Compliance and Regulatory
Compliance / Certification USB 2.0
Regional certifications CE, FCC, UL, KCC, RCM, ICES (Canada)
Environmental WEEE, RoHS2, Reach
Ordering Information
Warranty Two-year manufacturer's warranty
Optional Mounting accessories kit
Card Holder for card presence operation
PRODUCT FEATURES:
.. Designed for traditional clients
as well as thin-client products
and solutions.
.. Uses native CCID driver from
operating system – no additional
drive installation required.
.. Supports a broad range of
operating systems and works
with the native CCID driver and
PC/SC-API from the operating
system. Windows, Linux, Apple
and Android*.
.. Supports contactless smarts
cards with up to 848 Kbps
in the fastest ISO 14443
transmission mode.
.. Interoperable with various smart
card technologies, tags and
standards such as ISO 14443
A/B, ISO 7816, Seos® (OTP only)
.. Support for HID Global solutions:
ActivID® ActivClient, ActivID®
Applets, and HID Trusted Tag®
Service.
* reader/writer mode only; limited support of NTAG memory size / NDEF format to be implemented by additional software
