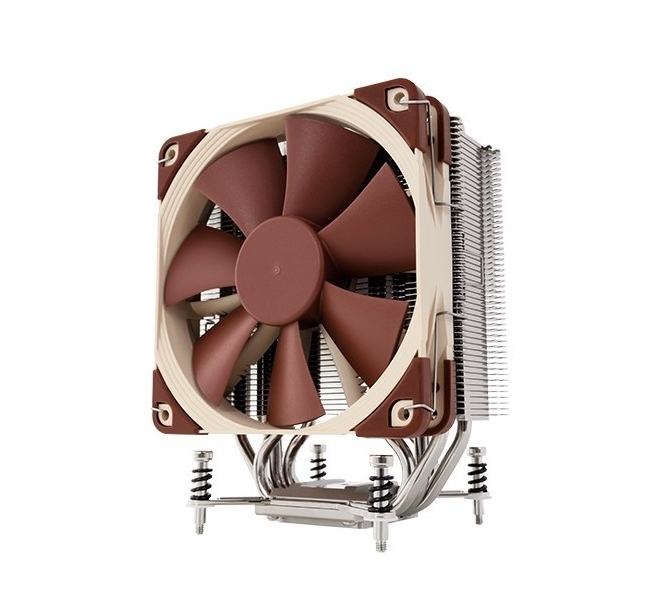

Noctua NH-U12DX i4, Intel LGA2011-0 & LGA2011-3 (Square ILM & Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)

Noctua NH-U12DX i4, Intel LGA2011-0 & LGA2011-3 (Square ILM & Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)

Výkonný chladič Noctua se šesti heatpipes určený pro 4U Xeon pracovní stanice a servery.

Pro socket: Intel LGA2011-0 & LGA2011-3 (Square ILM nebo Narrow ILM), LGA1356 a LGA1366 (wtih Xeon backplate)

Horizontální ventilátor splňuje specifikaci Intel a chladí i okolní kondenzátory. Další předností je malá výška a skvělá kompatibilita. Montážní systém pro Dual Xeon (5500) socket 1366.  Součásti balení je špičkový ultratichý 120mm větráček Noctua NF-F12 PWM  1200 - 15000 ot/min a výborná teplovodivá pasta NT-H1. Optimalizovaná geometrie a povrch lopatek zaručí mimořádný statický tlak pro velmi výkonné chlazení. Díky použití speciálních "Vortex-Control Notches" (zoubkované lopatky) leží frekvence zvuku v oblasti přijemnějšího vnímání (psychoakustika).  Innovativní samostabilizující olejové ložisko pro velmi tichý chod a dlouhou životnost! 6 let záruka od výrobce.


Noctua's DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 12cm model NH-U12DX i4 comes equipped with Noctua’s award-winning NF-F12 Focused Flow™ fan with PWM for automatic speed control. Due to its slim design, the NH-U12DX i4 now provides easy access to the memory slots and better compatibility with tall modules. Fitted with the professional SecuFirm2™ mounting system and bundled with Noctua's industrial-grade NT-H1 thermal compound, the NH-U12DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.

Award-winning NH-U12 series
The NH-U12DX i4 is based on the latest version of Noctua’s award-winning NH-U12 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.


NH-U12DX i4 Features Easier access to RAM
Thanks to its slim design with only 45mm fin depth, the NH-U12DX i4 ensures easy access to the RAM slots. When installed parallel to the slots, it will not overhang the memory on LGA1356, LGA1366 and LGA2011 Square ILM even with two fans installed, thus providing full compatibility with tall RAM heatsinks.


NF-F12 120mm Focused Flow™ fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation. button


NH-U12DX i4 Features PWM support and Low-Noise Adaptor
The NF-F12 120mm fan supplied with the NH-U12DX i4 supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.


NH-U12DX i4 Features Anti-vibration pads and fan-clips for second NF-F12 (optional)
For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12DX i4 includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.


NH-U12DX i4 Features SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel’s LGA2011 (both Square and Narrow ILM), LGA1356 and LGA1366 Xeon platforms, the SecuFirm2™ mounting included with the NH-U12DX i4 guarantees perfect contact pressure and maximum convenience on all sockets.


NF-A15  NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. button


NH-U12DX i4 Features 6 years warranty (2 years reseller - 4 years manufacturer)
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTBF rating of more than 150.000 hours and the entire NH-U12DX i4 package comes with a full 6 years manufacturer’s warranty.

Cooler Specification:
Socket compatibility: Intel LGA2011-0 & LGA2011-3 (Square ILM & Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)
Height (without fan): 158 mm
Width (without fan): 125 mm
Depth (without fan): 45 mm
Height (with fan): 158 mm
Width (with fan): 125 mm
Depth (with fan): 71 mm
Weight (without fan): 580 g
Weight (with fan/s): 755 g
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility: 120x120x25

Scope of Delivery:
NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Anti-vibration pads and fan-clips for second NF-F12
Warranty: 6 Years

FAN Specification:
Model: Noctua NF-F12 PWM
Bearing: SSO2
Max. Rotational Speed (+/- 10%): 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%): 1200 RPM
Min. Rotational Speed (PWM, +/-20%): 300 RPM
Max. Airflow: 93,4 m3/h
Max. Airflow with L.N.A.: 74,3 m3/h
Max. Acoustical Noise: 22,4 dB(A)
Max. Acoustical Noise with L.N.A.: 18,6 dB(A)
Voltage Range: 12 V
MTTF: > 150.000 h


Kontrola kompatibility chladičů Noctua se základními deskami:
https://ncc.noctua.at/motherboards

Kompatibilita chladičů Noctua s procesory:
https://ncc.noctua.at/cpus

Přehled kompatibility CPU socketů:
https://ncc.noctua.at/socket-compatibility-overview

Termíny doplnění montážních sad LGA1700 do balení chladičů Noctua
https://noctua.at/en/productfaqs/productfaq/view/id/247/

Upgrady montáže CPU chladičů Noctua jsou poskytovány zdarma výrobcem s přímým zasláním na adresu koncového uživatele. Pro objednání a dodání montážních sad Noctua je vyžadován doklad o koupi (foto nebo sken faktury) chladiče procesoru Noctua a hardwarových komponent odpovídajících konkrétní sadě.
